DISAB Vacturion™ DL10

Vacuum loaders for dry, wet and liquid materials

DISAB Vacturion™ DL10 is a vacuum unit specially adapted for wet and dry materials. The round tank makes it possible to suck liquid material. The vacuum loader can be used both as a standalone vacuum extractor with a working hose or connected to a fixed pipe system as a central vacuum cleaner.
Get in Contact
Download PDF

Rent your vacuum solution

Work peak or temporary challenges in your business? From industrial vacuum cleaners to vacuum loaders, to rent for long or short term. Safe, easy and flexible.

DISAB rental logo
Read more about Rental

A vacuum unit with powerful suction capacity

The DISAB Vacturion™ DL10 has a powerful vacuum pump that is powered by the truck engine via a separate gearbox. The suction capacity is regulated by adjusting the engine speed of the truck made on the control panel of the unit. As an option, you can also choose to equip the vacuum loader with a hose boom. The absorbed material is separated by the air stream in three stages – through the tank, the filter chamber and finally through the safety filter. Emptying can be done by adding the function vibrators, which allow the tank to be tipped with support. The emptying hatch is hydraulically operated. During emptying, the filter chamber can also be emptied by a pneumatic opening of the filter cover.

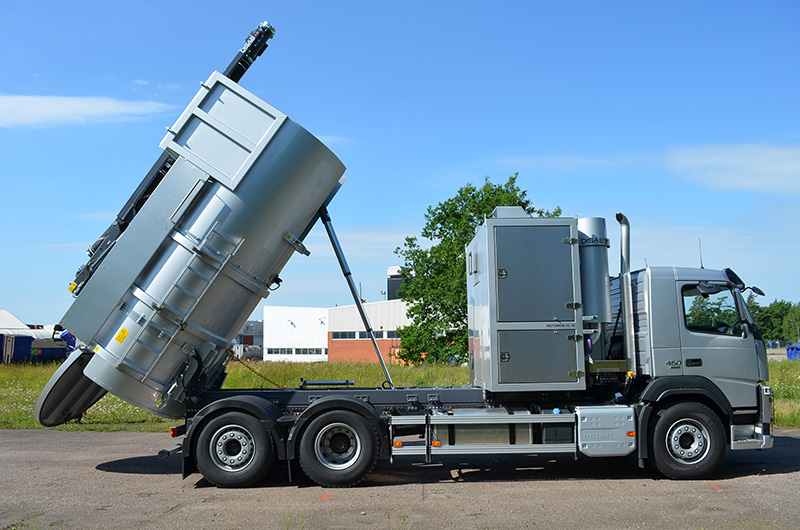

DISAB Vacturion™ DL10 vacuum loader with its cylindrical tank raised for discharge, parked on a paved surface, highlighting its powerful suction capacity and hydraulic tipping mechanism.

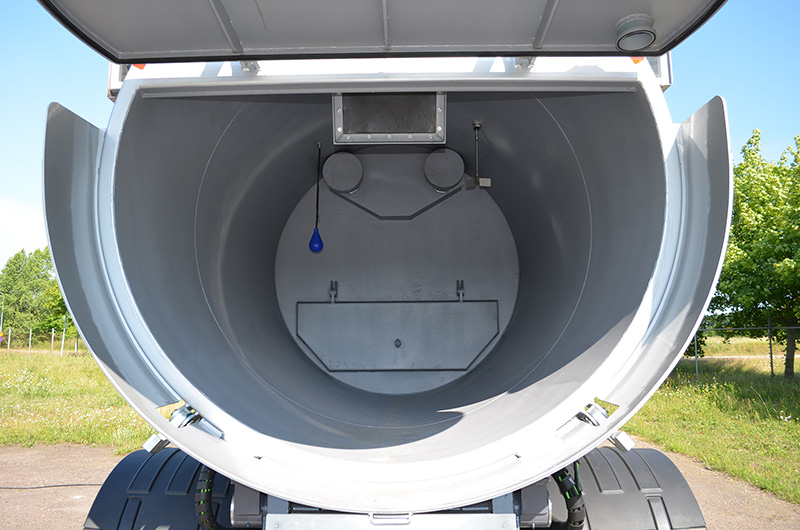

Close-up view inside the open cylindrical tank of a DISAB Vacturion™ DL10 unit, showing the internal partition and chamber structure used for safe, efficient collection and discharge of industrial materials.

A vacuum loader for tough industrial environments

The DISAB Vacturion™ DL10 has a robust design to withstand all the tough environments and applications to which it is exposed to. It is designed to provide easy operation for the operator. The powerful suction capacity makes the vacuum loader suitable for industries such as cement, foundries, steel mills, quarries and power plants. The DISAB Vacturion™ DL10 is part of our basic range and thus has a limited number of options. When you invest in a vacuum loader from DISAB, operator education via DISAB Academy is always included, here you will be certified and trained in how to safely and cost-effectively use the vacuum loader’s full potential.



Download the Vacturion™ DL10 Product Sheet

Benefits of DISAB Vacturion™ DL10

  • Power transmission from the truck’s engine provides optimal load capacity and economical operation.
  • Robust construction.
  • Filter system for wet and dry material.
    220 kW, 8 100 ㎥/h suction capacity
  • Equipped with hose support for easy storage of hoses and pipes.
  • Hydraulically operated emptying hatch.
  • Wide range of applications where dry or wet material is effectively sucked up.
  • Operator education via DISAB Academy is included.
