DISAB BEAT

Stationary filter separator for industries

BEAT is a standalone filter separator with top-mounted filters, designed to be connected to a vacuum unit in an industrial vacuum system. Reliable and robust, for dry and wet material.
Get in Contact
Download PDF

Flexible filter separator for a clean working environment

One of the most important problems to solve when planning a central suction system is how to handle collected dust and materials. BEAT is designed for emptying materials that can pass through a conical-shaped opening. Absorbed material is first separated into a specially designed settling chamber, where heavier and coarser material is separated and falls to the bottom of the dust container. The air stream continues to the main filter, where the remaining fine airborne particles are separated and create a dust-free working environment. Emptying is easily done from the conical container by the manual opening of the drain valve. Automatic emptying is also available as an option for BEAT.

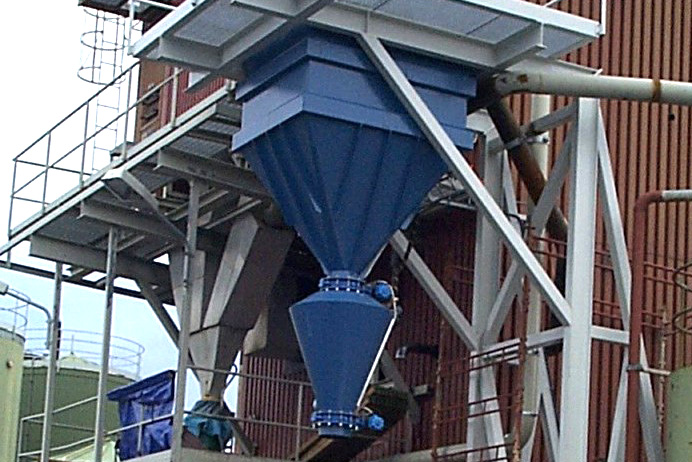

Blue conical BEAT filter separator mounted on a steel support frame outdoors, designed for industrial dust separation and manual or automatic emptying of collected material.

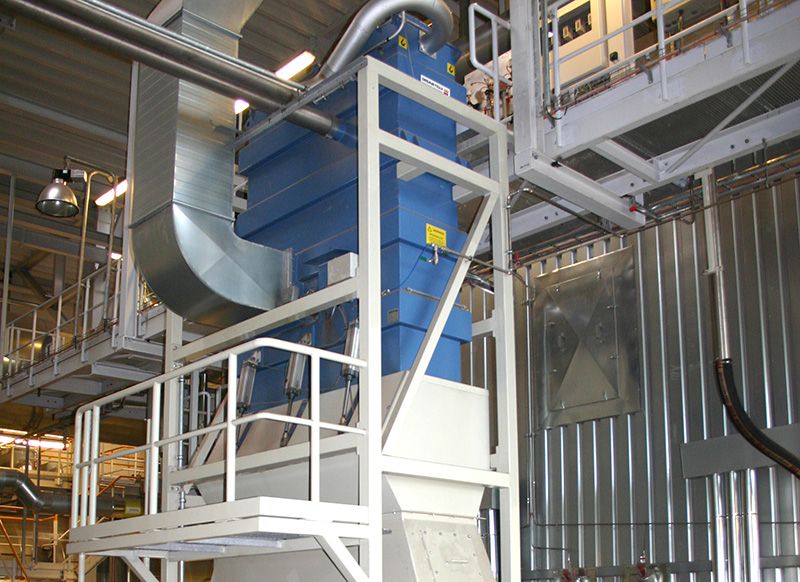

Installed BEAT filter separator system inside an industrial building, connected to ducting and surrounded by access platforms, showing its integration in a central vacuum and filtration setup.

Cost-effective and reliable filter separator

BEAT is the reliable and robust filter separator that fits most industries. The separator is equipped with the vacuum-controlled filter cleaning system ATM (re-pulsing cleaning). When cleaning, a valve is activated which gives an instantaneous and strong air input backwards through the filters, which in turn effectively knocks off the dust collected on the filter surface. The frequency and duration of the air stream can be adjusted according to the material. The system provides you with a reliable and cost-effective filter separator, where no compressed air is needed. Satisfied customers can be found in aluminium production, bakeries, concrete industry, blasting industry, waste incineration, steel mills and sawmills.



Download the BEAT Product Sheet

Benefits of DISAB BEAT

  • Robust construction for industrial use.
  • Designed for high vacuum.
  • Filter system for all types of material, wet and dry.
  • Automatic filter cleaning without compressed air.
  • Options for different filters.
  • Dust container with a steep output angle and inspection hatch.
